Working Principle and Operating Conditions of Permanent Magnet Generator

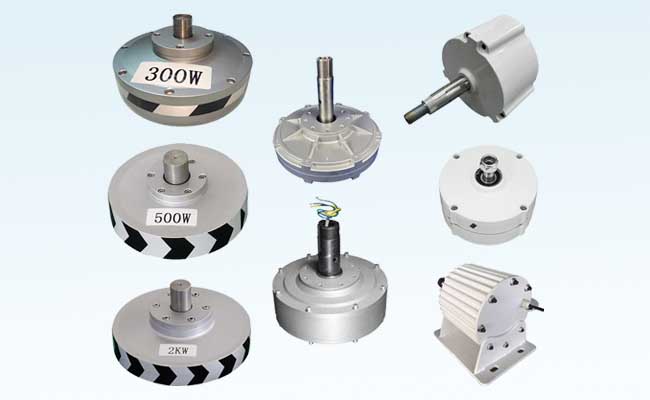

A Permanent Magnet Generator converts mechanical energy into electrical energy. It is compact, efficient, and minimizes energy loss. As energy conservation and environmental protection gain importance, researchers continue to explore Permanent Magnet Generators. These generators often work without brushes, making them ideal for small and micro motors. When paired with variable frequency power supplies, they enable precise speed control. With advancements in permanent magnet materials, industries use these generators in household appliances, medical devices, automobiles, aviation, and national defense.

Working Principle of Permanent Magnet Generator

• The generator includes two rotors and one stator. The rotors sit on both sides of the stator, while a ring of permanent magnets forms the rotor. The generator’s power and voltage depend on magnet size, coil diameter, and the number of turns.
• Electric vehicle motors, designed with iron-core disc structures, generate electricity without modifications. However, their speed decreases under load.
• Manufacturers use expensive strong magnets for Permanent Magnet Generators, but hobbyists can build small models for experiments. Discarded electric vehicle motors often contain reusable magnets.
• The stator structure and working principle resemble those of an AC induction motor. Most generators feature a four-pole design, with three-phase windings arranged accordingly. When powered, they create a four-pole rotating magnetic field.
• Unlike conventional induction motors, permanent magnet synchronous motors use rotors with embedded or surface-mounted permanent magnets.
• Magnetic flux follows the path of least resistance, pulling the rotor into synchronous rotation with the stator’s magnetic field.

Advantages of Permanent Magnet Generator

• A Permanent Magnet Generator eliminates the need for excitation power, reducing friction losses from brushes and slip rings. This design significantly improves efficiency.
• Traditional excitation generators operate at 1500–6000 RPM with an average efficiency of 45%–55%, while Permanent Magnet Generators achieve 75%–80%.
• A self-starting voltage regulator removes the need for an external excitation power source. As long as the generator rotates, it produces electricity.
• Even when the vehicle’s battery fails, the charging system continues to function as long as the engine runs.
• Drivers can still start vehicles without batteries by manually cranking the handlebar or push-starting.
