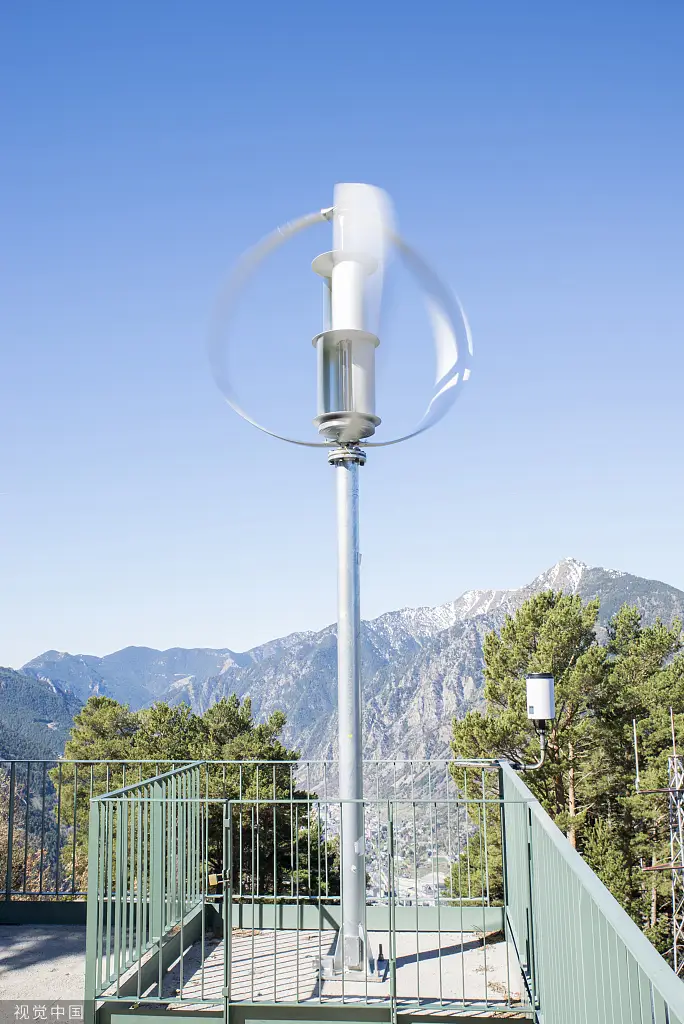

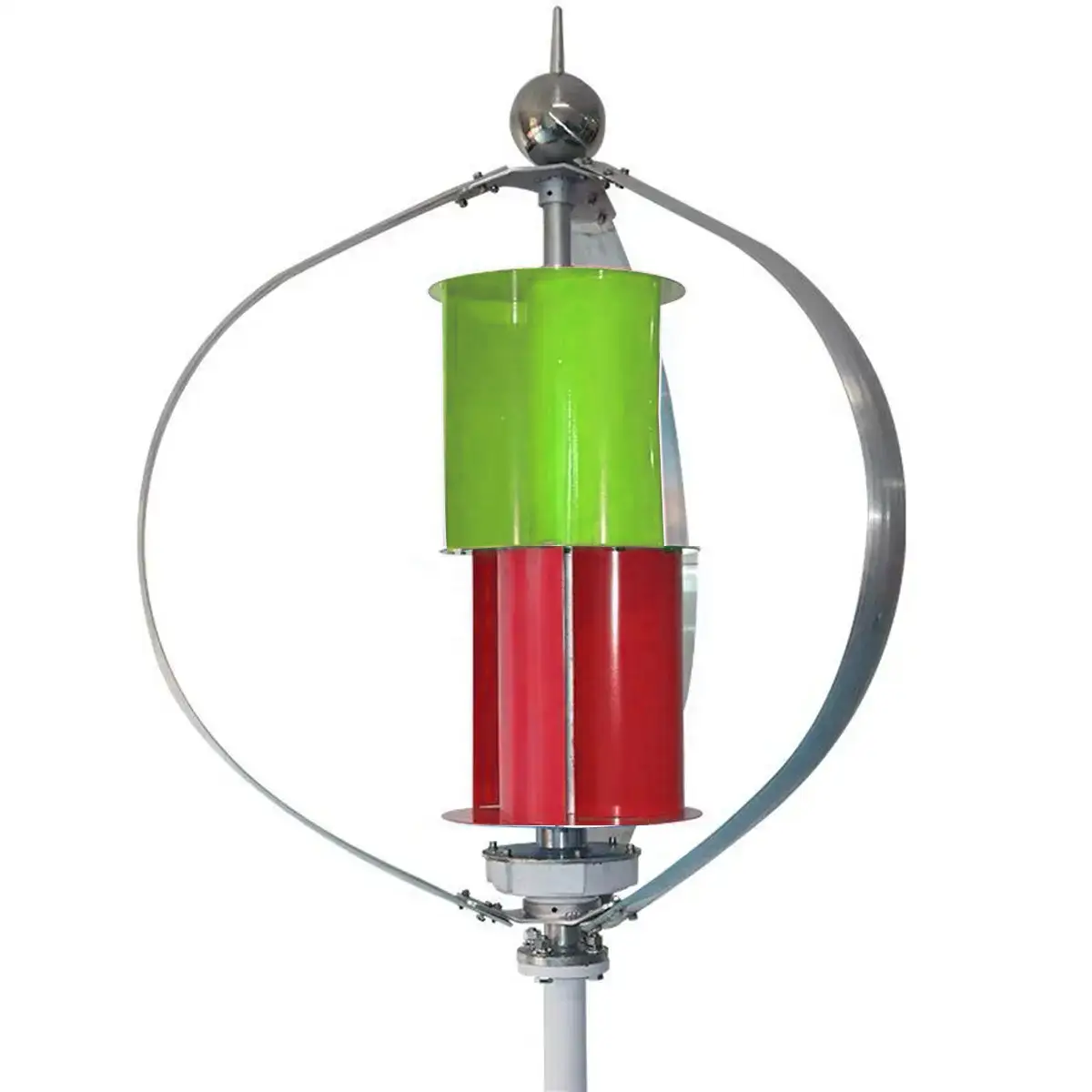

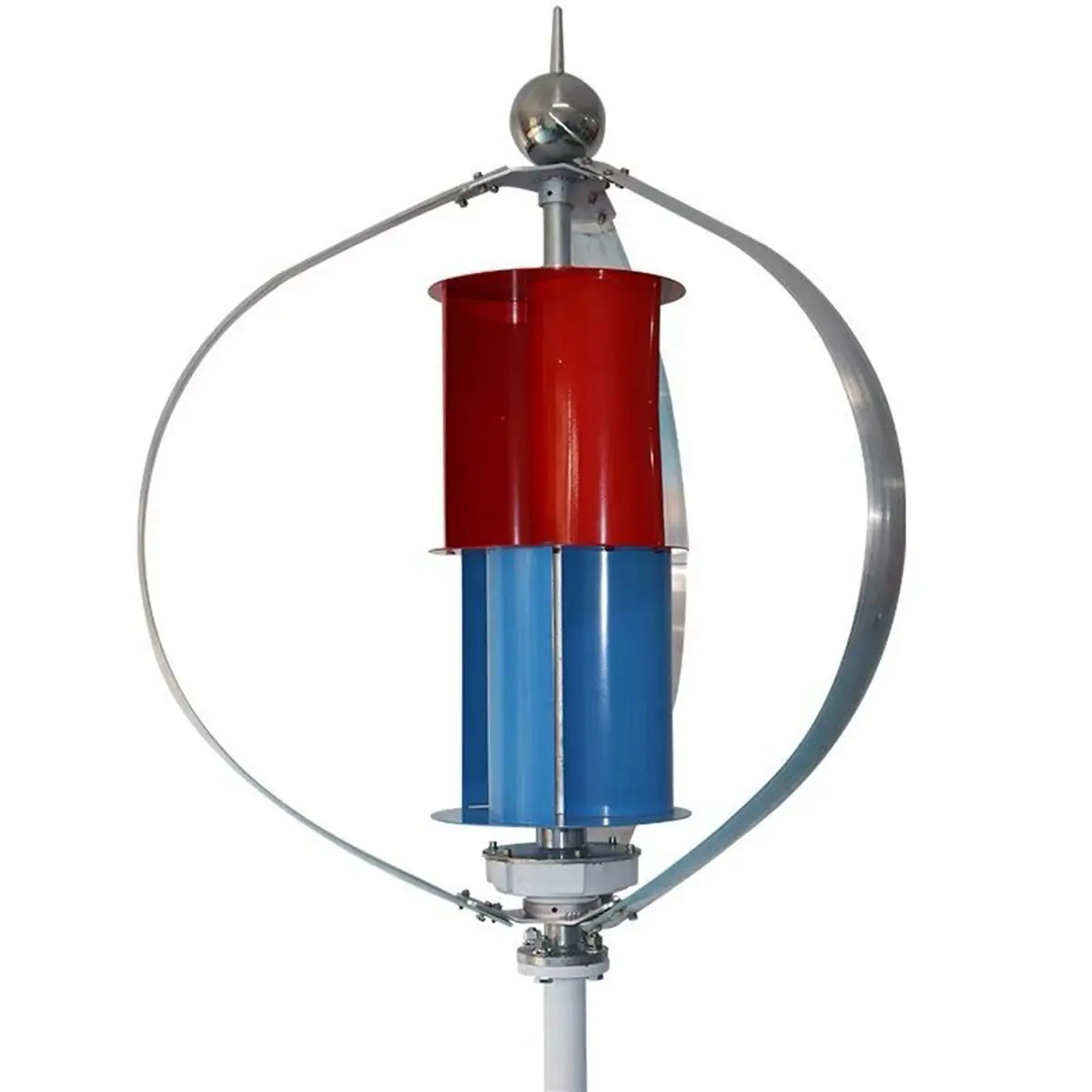

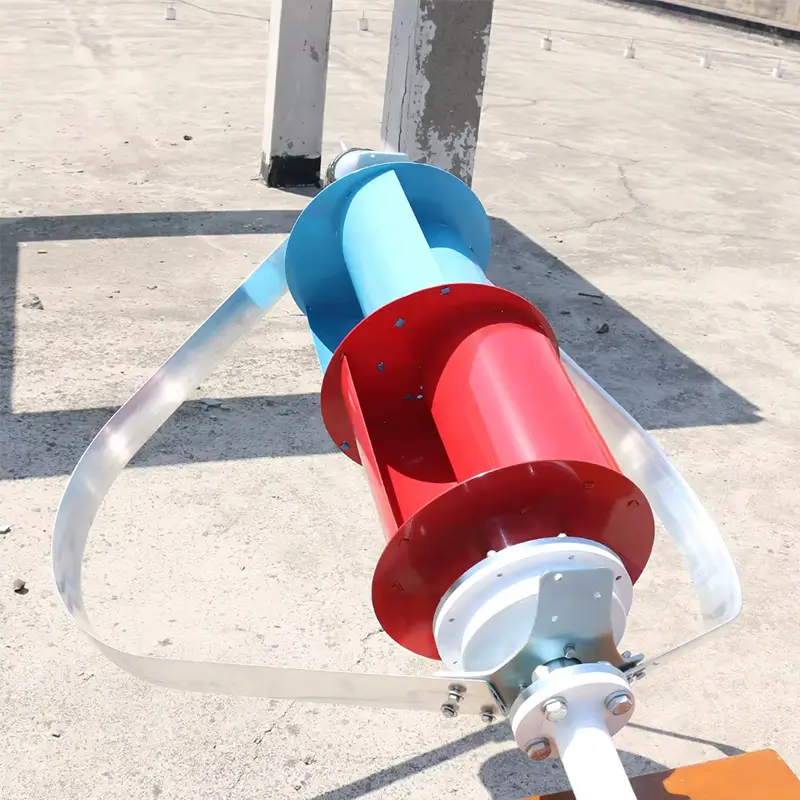

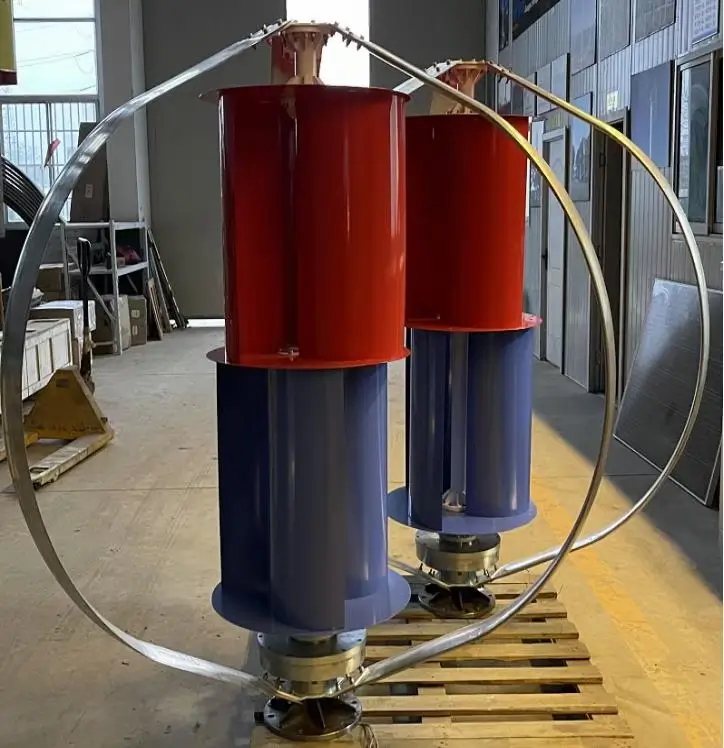

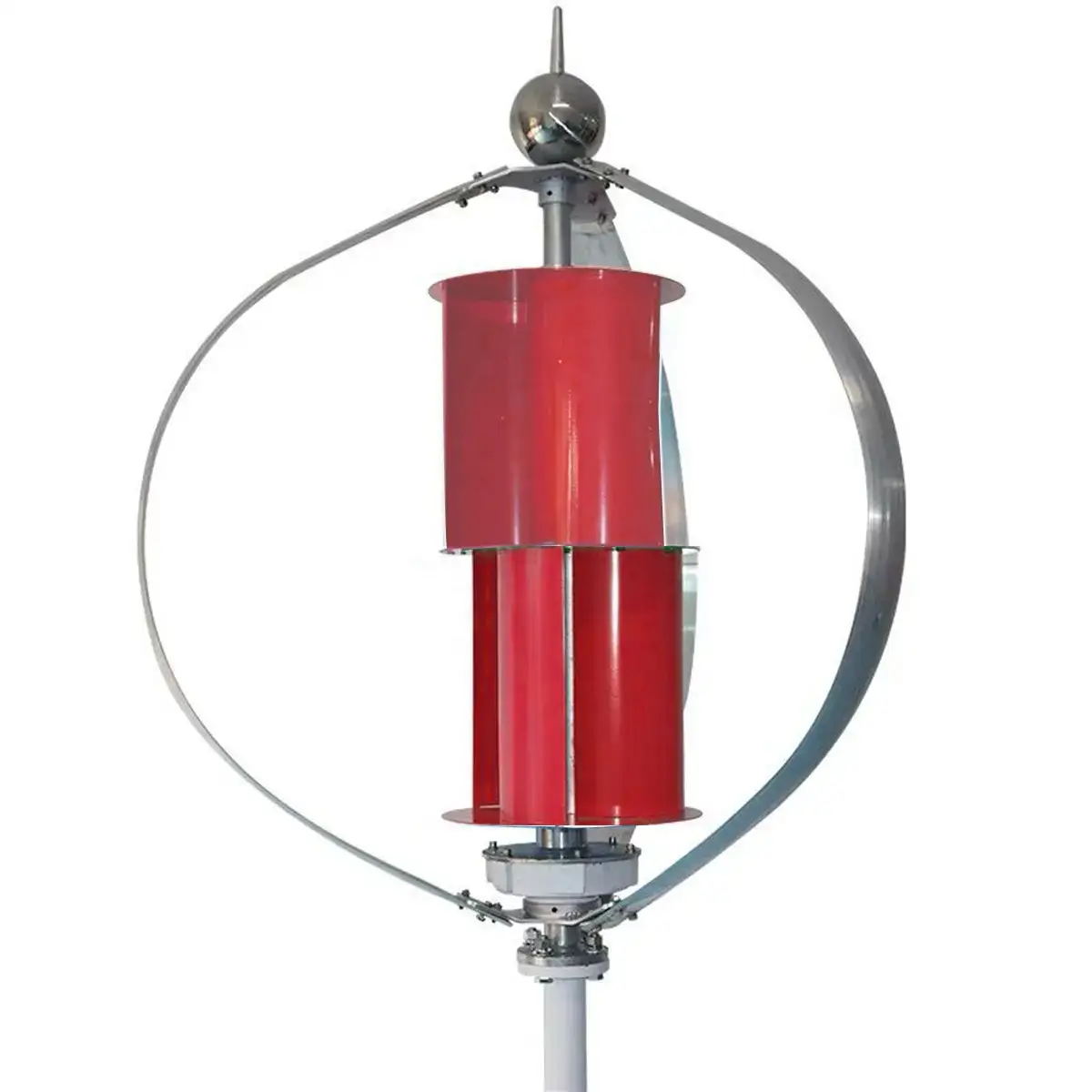

Q Wind Turbine – Compact Vertical Axis Wind Turbine
A compact Q-type vertical axis wind turbine designed for street lighting, farms, islands, public facilities, and customized distributed clean energy projects.
- Product Advantages
Q wind turbine
- Low starting wind speed, high wind energy utilization rate; small size, beautiful appearance, low operating vibration.
- The installation adopts humanized design, which is convenient for equipment installation, maintenance and repair.
- The wind wheel blades are made of aluminum alloy, with optimized aerodynamic shape design and structural design, high wind energy utilization coefficient, and increased annual power generation.
- The generator adopts a patented permanent magnet rotor AC generator with a special stator design, which effectively reduces the resistance torque of the generator, and at the same time makes the wind wheel and the generator have better matching characteristics and the reliability of the unit operation.
Q-Type Vertical Axis Wind Turbine Applications
Urban & Public Facilities

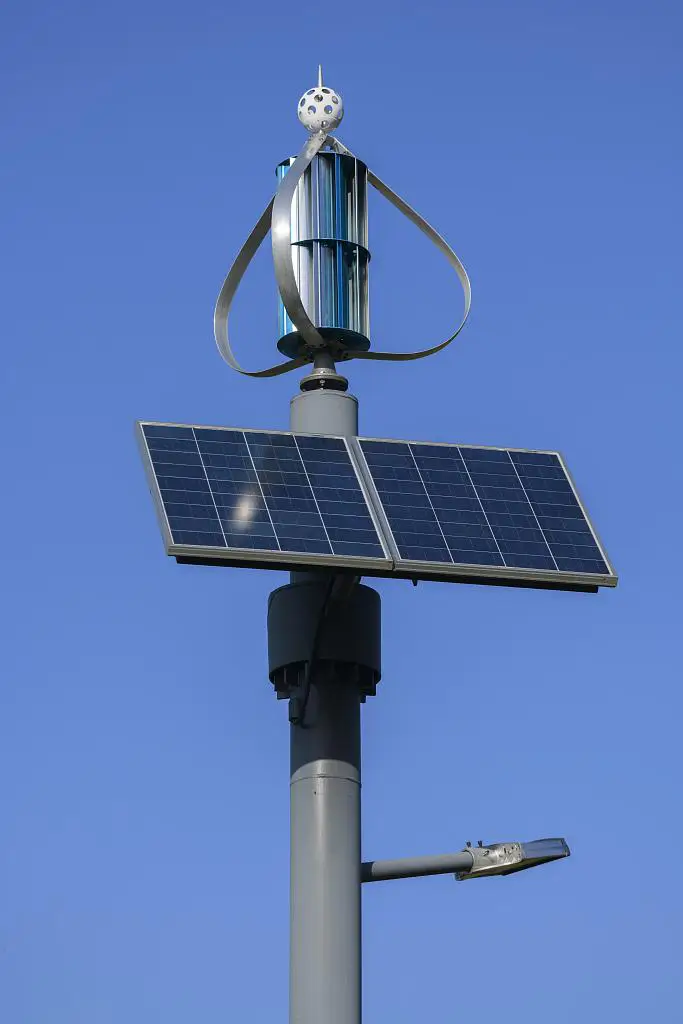

For parks, campuses, street lighting areas, bus stations, and green energy demonstration projects.

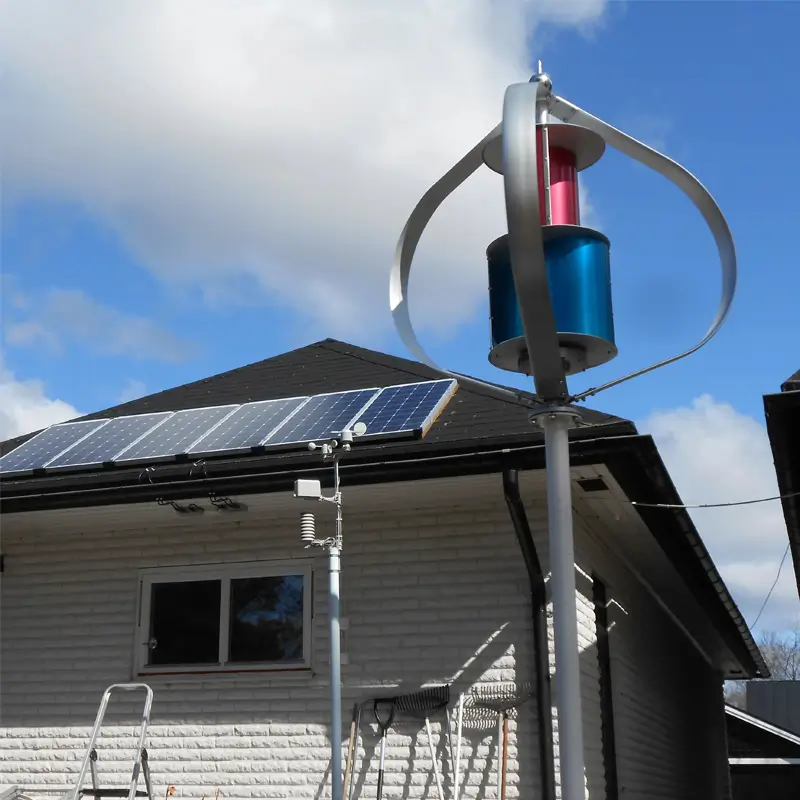

Rooftop & Building-Integrated Wind Power
Works well in spaces where wind direction changes frequently and compact installation is required.

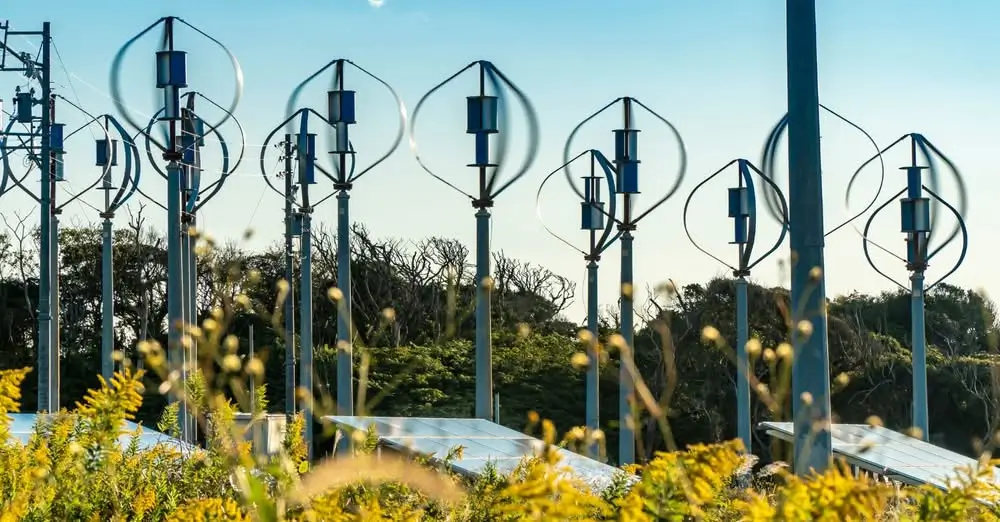

Wind-Solar Hybrid Energy Systems
Can be combined with solar panels, batteries, controllers, and inverters for distributed renewable power projects.

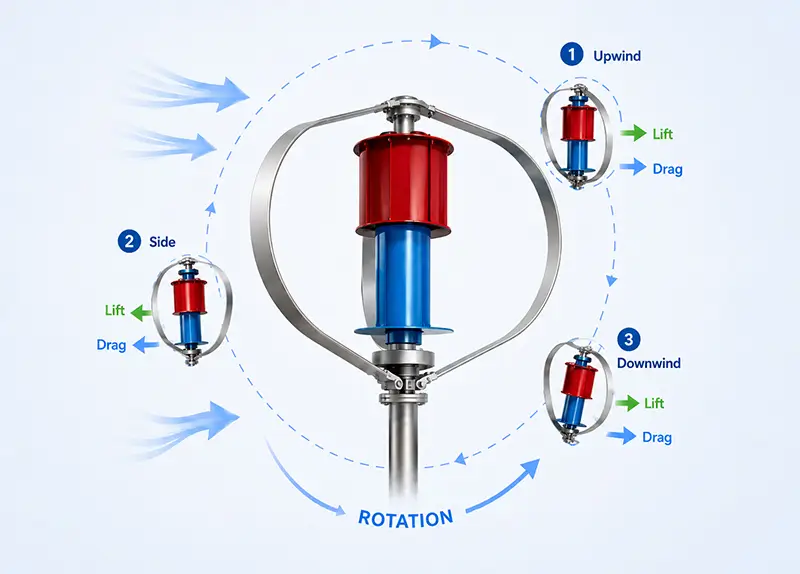

Aerodynamic principles and torque generation
Hybrid drive of lift and drag: When the blades of Q-type VAWT rotate, they have both lift-type (similar to Darrieus type) tangential force contribution and rely on the initial starting torque of drag type (similar to Savonius type).
Dynamic stall: The blades may experience dynamic stall due to the change of angle of attack during rotation, resulting in efficiency fluctuations, which needs to be alleviated by optimizing the blade shape (such as spiral or swept design).
Q-Type Detailed Parameters
Model Incloud: 500W/1000W/2000W/5000W/10KW
Rated Power:500W/1000W/2000W/50000W/10KW
Maximun Power: 550W / 1100W / 2200W / 5500W/11KW
Rated Voltage: 12V / 24V / 48V / 96V / 120V / 220V / 380V
Start-up Wind Speed: 3m/s
Rated Wind Speed: 14m/s
Number of blades:3 pieces
Generator:three phase AC permanent magnet generator/maglev generator
- Customized Products

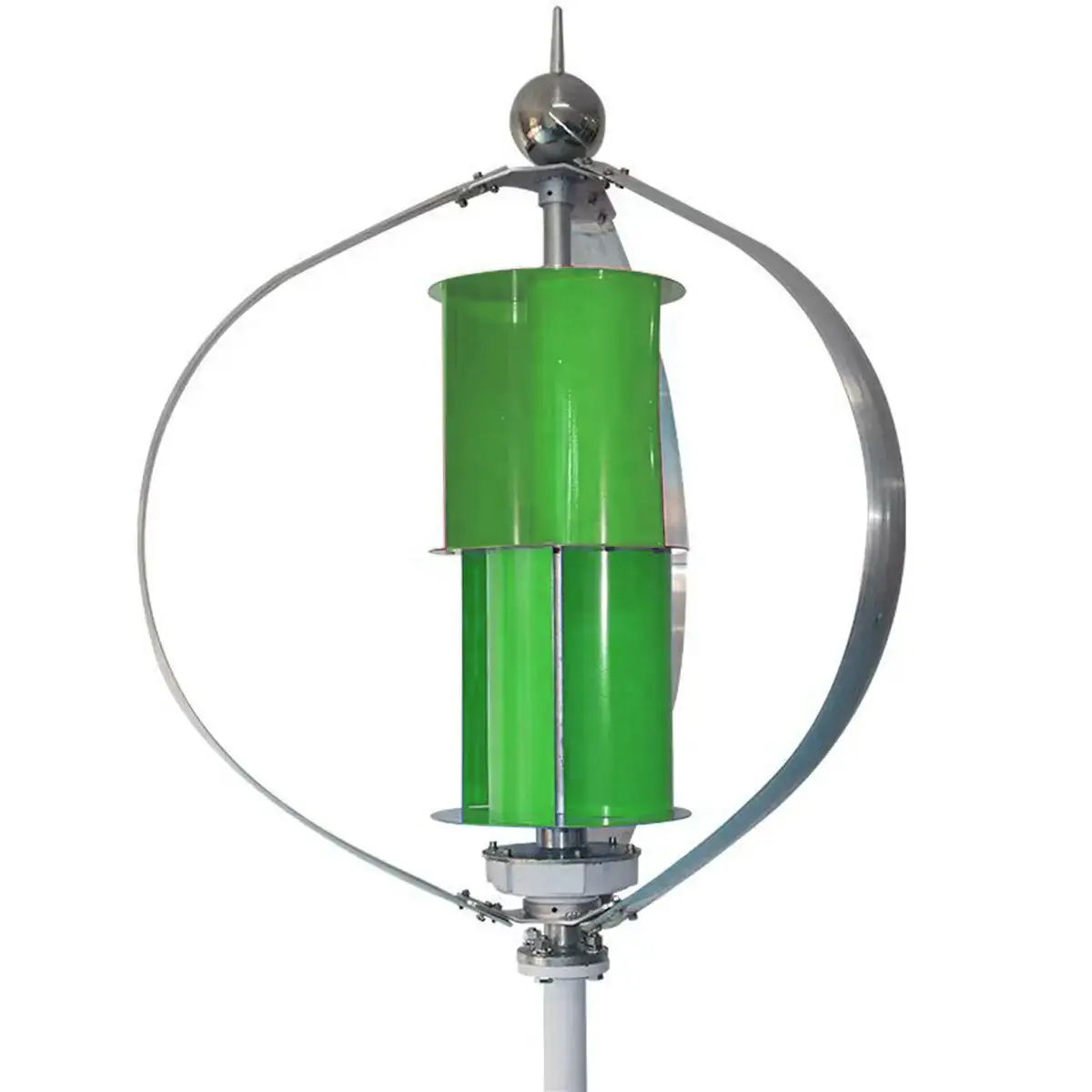

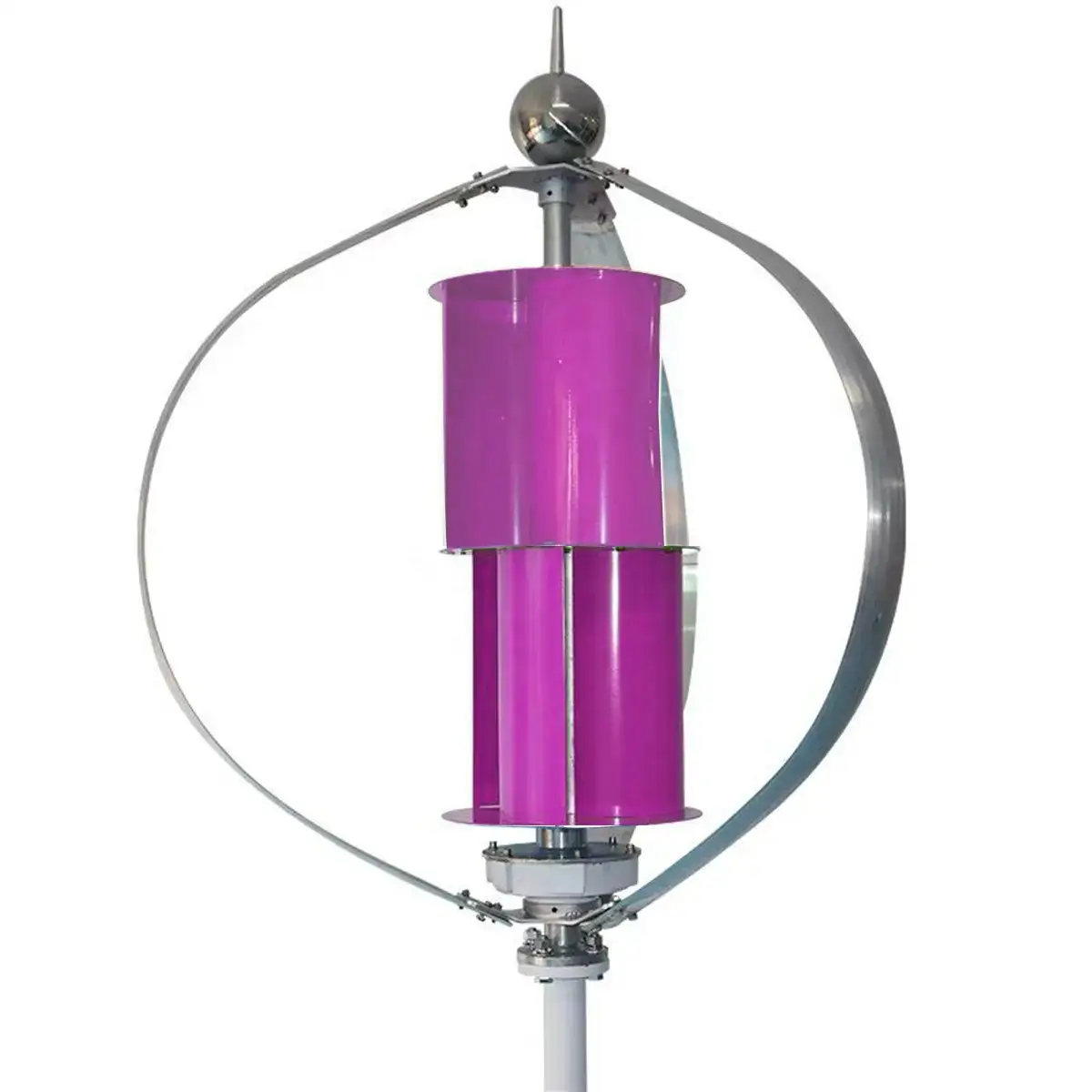

ELEGE can customize the products you want
Supports customization of blade colors, patterns, and logos, so whether you’re looking to meet individual DIY needs or corporate branding requirements, we’ve got you covered. On top of that, the blade is designed for quick disassembly and replacement, which means users can easily upgrade or repair their systems without any hassle. This way, you get a product that’s not only flexible and personalized but also practical and user-friendly. It’s all about making your experience as smooth and convenient as possible!
- Application

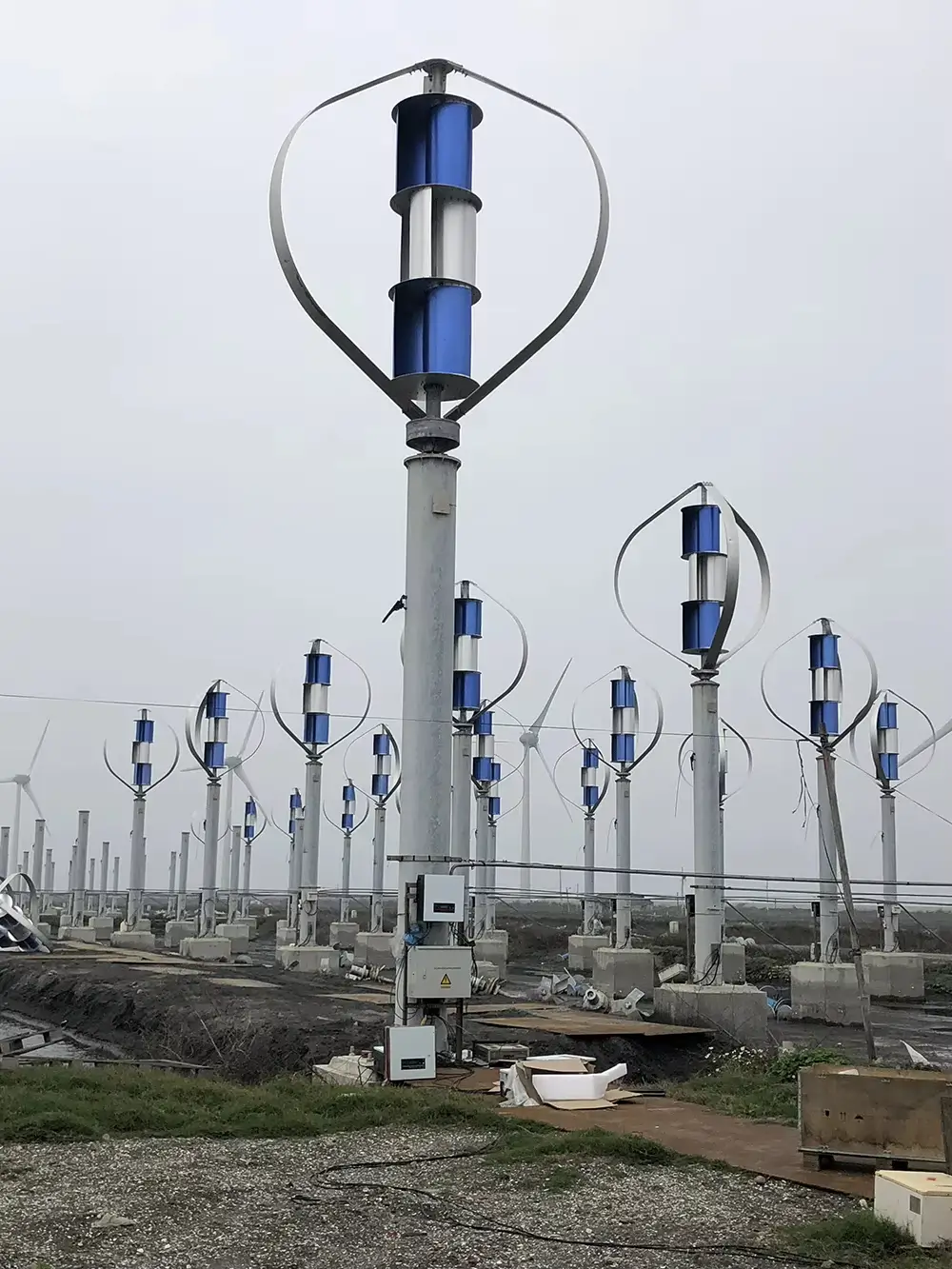

Application Scenario
WIN-WIN COOPERATION
Support customization of blade colors, patterns, and logos, not only meeting personal DIY needs, but also meeting enterprise brand promotion requirements. In addition, the blade is designed for quick disassembly and replacement, allowing users to easily upgrade or repair their systems. The combination of customization, durability, and user-friendly design makes our product a universal and reliable choice for various applications.
