A tulip shaped wind turbine combines flower-inspired design with vertical-axis wind technology. Its compact structure makes it an option for gardens, commercial landscapes, and small wind energy projects.
This guide explains how tulip wind turbines work, compares ELEGE ET Series specifications, and outlines installation and selection considerations.
What Is a Tulip Shaped Wind Turbine?
A tulip shaped wind turbine is a vertical axis wind turbine (VAWT) with curved blades arranged around a vertical shaft. Its flower-like appearance combines a distinctive architectural form with electricity generation.
Unlike conventional horizontal-axis turbines, vertical-axis models accept wind from different horizontal directions without a separate yaw mechanism. As a result, they can accommodate changing wind directions.
However, rotor design alone cannot guarantee strong energy production. Wind speed, turbulence, installation height, and the turbine power curve all affect actual output.
How Does a Tulip Shaped Wind Turbine Work?
Wind flowing around the curved blades creates aerodynamic forces that turn the rotor. The shaft then drives a generator, converting mechanical energy into electricity.
ELEGE equips its ET Series with a direct-drive, coreless three-phase AC generator. This arrangement eliminates a gearbox and reduces the number of mechanical transmission components.
Compatible control equipment then manages the generated electricity for battery charging or integration into a renewable energy system.
Does a Tulip Wind Turbine Work in Low Wind Speeds?
All four ELEGE ET models specify a start-up wind speed of 2 m/s and a rated wind speed of 14 m/s.
At start-up speed, the rotor can begin turning under specified conditions. However, rotation does not mean the turbine is already producing useful charging power or its rated output.
Therefore, buyers should examine the model-specific power curve and local wind conditions when estimating electricity generation.
Key Advantages of Tulip Shaped Wind Turbines
Tulip turbines combine a compact vertical rotor with a distinctive appearance. Their benefits depend on the site and the intended application.
Compact and Space-Saving Design
The vertical rotor occupies a relatively small rotational footprint, which can help designers integrate the turbine into gardens and commercial landscapes.
Nevertheless, every installation needs sufficient clearance, structural support, and unobstructed airflow.
Low-Noise Design Considerations
Noise matters for residential and public-facing installations. Blade geometry, rotor speed, mounting conditions, and nearby structures all influence operating sound.
For this reason, buyers planning noise-sensitive projects should request acoustic data for the specific ET model rather than assume a fixed noise level.
Wind Capture from Different Directions
A vertical-axis rotor can respond to wind arriving from multiple horizontal directions without a conventional yaw mechanism.
Even so, turbulence around buildings and trees can reduce electricity generation. Good siting remains essential.
Customizable Appearance
The tulip-inspired shape can complement landscape and architectural designs. In addition, ELEGE offers options for blade colors, patterns, and branding, subject to manufacturing requirements.
ELEGE ET Series Tulip Wind Turbine Specifications
ELEGE offers four ET Series models with rated power from 500W to 2000W. Voltage choices differ by model, so buyers should confirm the required electrical configuration before ordering.
| Parameter | ET-500 | ET-1000 | ET-1500 | ET-2000 |
|---|---|---|---|---|
| Rated Power | 500W | 1000W | 1500W | 2000W |
| Maximum Power | 550W | 1100W | 1650W | 2200W |
| Optional Voltage | 12/24V | 12/24/48V | 24/48V | 24/48V |
| Start-Up Wind Speed | 2 m/s | 2 m/s | 2 m/s | 2 m/s |
| Rated Wind Speed | 14 m/s | 14 m/s | 14 m/s | 14 m/s |
All four models share these construction and operating specifications:
| Parameter | Specification |
|---|---|
| Turbine Type | Vertical Axis Wind Turbine |
| Number of Blades | 2 |
| Blade Material | FRP / Composite Material |
| Body Material | Aluminium Alloy |
| Generator | Coreless Three-Phase AC Generator |
| Drive System | Direct Drive |
| Control System | Electromagnetic Brake |
| Lubrication | Self-Lubrication |
| Tower Options | Guyed Tower / Independent Tower |
| Working Temperature | -40°C to 80°C |
Specifications follow ELEGE ET Series product documentation. Confirm the selected voltage, mounting arrangement, and equipment compatibility before purchase.
Understanding Rated Power and Energy Output
Rated power describes output under specified operating conditions, not continuous electricity generation.
For example, a 1000W turbine operating at rated output for one hour generates 1kWh. In practice, wind speed changes throughout the day, so actual energy production varies.
A reliable forecast therefore requires the turbine power curve and wind-speed measurements from the proposed installation site.
Where Can Tulip Shaped Wind Turbines Be Installed?
Residential, commercial, and landscape projects may use tulip turbines when the site provides adequate wind exposure and a safe mounting location.
Residential Gardens and Private Properties
Garden and villa projects can incorporate tulip turbines as visible small-scale renewable energy features. Before installation, owners should check clearance from buildings, trees, and occupied areas.
Rooftops and Commercial Buildings
Some buildings may accommodate turbine installations after a suitable engineering assessment. However, rooftop turbulence can reduce output, while vibration and dynamic loads affect the supporting structure.
Therefore, installers should assess structural capacity, mounting details, and maintenance access. ELEGE discusses these issues further in its Roof Mounted Vertical Axis Wind Turbine Guide.
Parks, Resorts, and Public Landscapes
Parks, resorts, campuses, and commercial landscapes may use tulip turbines as renewable energy features that complement their surroundings.
In public spaces, project designers must also account for pedestrian safety, electrical protection, noise, and access for maintenance.
Can Multiple Tulip Wind Turbines Be Installed Together?
Yes. Project developers can combine multiple tulip turbines in modular layouts or landscape-oriented renewable energy structures.

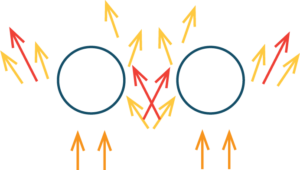

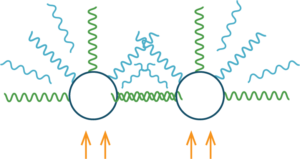

However, closely spaced rotors interact through their wakes. Depending on wind direction, rotor geometry, and spacing, these interactions can reduce or sometimes improve individual turbine performance.
Consequently, designers should evaluate spacing and total energy production rather than assume that a dense array automatically increases efficiency.
For a related landscape concept, explore ELEGE’s Wind Turbine Tree.
Can a Tulip Wind Turbine Work with Solar Panels?
Yes. A properly designed wind-solar hybrid system can combine an ET Series turbine with photovoltaic panels.
Solar panels generate power in sufficient sunlight, while wind turbines may generate electricity during daytime or nighttime when wind conditions permit. Together, the two sources can diversify generation.
For off-grid projects, the system may include compatible wind and solar controllers, batteries, an inverter, and electrical protection. The wind controller must also support the turbine’s required braking or diversion-load functions.
Even with both sources, prolonged periods of low wind and limited sunlight may require battery storage or backup power.
How to Choose the Right Tulip Wind Turbine
A suitable model should match the project’s wind resources, electrical demand, and installation conditions.
Evaluate Local Wind Conditions
Start with average wind speed, seasonal changes, hub height, and nearby obstacles. For more accurate estimates, compare site wind data with the model-specific power curve.
Select the Appropriate Power and Voltage
The ET Series spans 500W to 2000W, but voltage options vary. Therefore, buyers should verify compatibility with the intended controller, battery bank, and inverter.
Plan for Installation and Maintenance
Mounting structures must withstand operating loads and local environmental conditions. Although the ET Series uses direct drive and self-lubricating components, it still needs periodic inspection.
ELEGE’s product documentation recommends checking connections and operating components approximately every six months. Harsh environments may require more frequent checks.
Consider Project Customization
For distributors and commercial buyers, order quantity, branding, appearance, and electrical configuration can affect the final specification. ELEGE supports OEM/ODM discussions for project-specific requirements.
Frequently Asked Questions
Can a tulip wind turbine power outdoor lighting?
Yes, if the system produces enough energy for the lighting demand. Battery storage can help supply power when wind generation is insufficient.
Are tulip wind turbines suitable for coastal environments?
Coastal installation may be possible with appropriate corrosion protection. Confirm surface treatment, salt-spray resistance, and maintenance needs before installation.
Do tulip wind turbines require planning permission?
Rules vary by country and municipality. Installation height, noise limits, structural safety, and local zoning may determine whether approval is necessary.
Can a tulip wind turbine operate during freezing weather?
The ET Series specifies a working temperature range of -40°C to 80°C. However, ice on the blades can affect performance and safety, so cold-climate projects need suitable precautions.
Conclusion
Tulip shaped wind turbines combine distinctive design with small-scale renewable energy generation for residential, commercial, and landscape projects.
ELEGE offers ET Series models from 500W to 2000W. Contact our team to discuss turbine selection, customization, and OEM/ODM project requirements.
